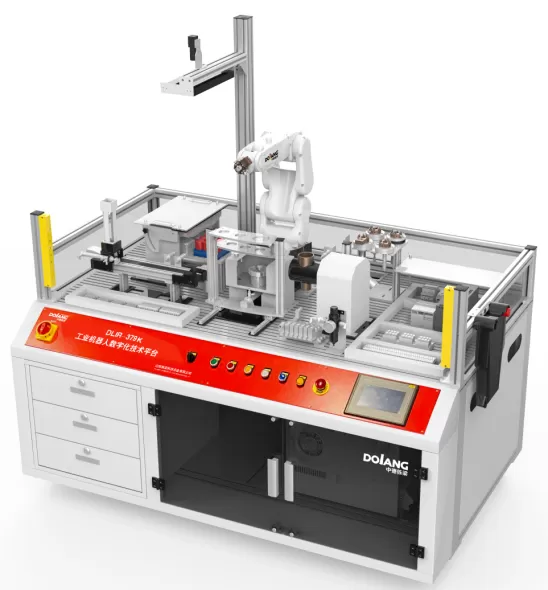

DLIR-379K Industrial Robot Digital Technology Training Platform

Model: DLIR-379K Industrial Robot Digital Technology Training Platform

1.Temperature: -5 to +45°; Ambient humidity: ≤85% (25°C).

2.System footprint: Length × Width × Height ≈ 3m × 2m×1.6m (Width can be adjusted according to site conditions)

Platform dimensions: Length × Width × Height = 1.8 m × 1.1 m × 1.7 m

3.Total power: Approximately 3.0 KVA.

4.Altitude: ≤4000m.

5. Input power: AC220V±10%.

Output power: DC24V.

6.Environment: Vibration ≤0.5G, free from dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water or salt, etc.

7.The system is reliably grounded: the grounding impedance is less than 4 ohms.

8.Compressed air pressure: 0.3-0.7MPa.

Inquire Now

DLIR-379K Industrial Robot Digital Technology Training Platform is an industrial robot professional skills assessment platform developed based on the national vocational skills standards for "Industrial Robot System Operators" and "Industrial Robot System Maintenance Personnel". It integrates training, assessment, and evaluation.

The platform is based on KUKA KR4 R600 industrial robots and SIEMENS S7-1200 PLCs, and is equipped with Hikvision industrial vision (2D color) touch screens, RFID reading and writing modules, basic operation assessment modules, machining automation task units, intelligent transfer-sorting-palletizing task units, gift packaging task units, welding task units, grinding and polishing task units, digital twins and industrial gateways, etc.

The platform can provide skills training and assessment for industrial robots, including coordinate calibration, trajectory programming and operation, assembly, handling, palletizing, packaging, welding, grinding and polishing , gluing, and industrial vision inspection, which are closely related to industrial applications. It can also be used to assess digital technologies such as simulation, digital twins, and industrial gateways.

The skills that students can learn and master using this platform include sensor detection technology, visual inspection technology, RFID reading and writing technology, electrical control technology, motor drive technology, industrial robot technology, PLC technology, configuration technology, production line process design, system maintenance and fault detection technology, industrial Ethernet communication technology, digital twin technology, and industrial gateway technology.
