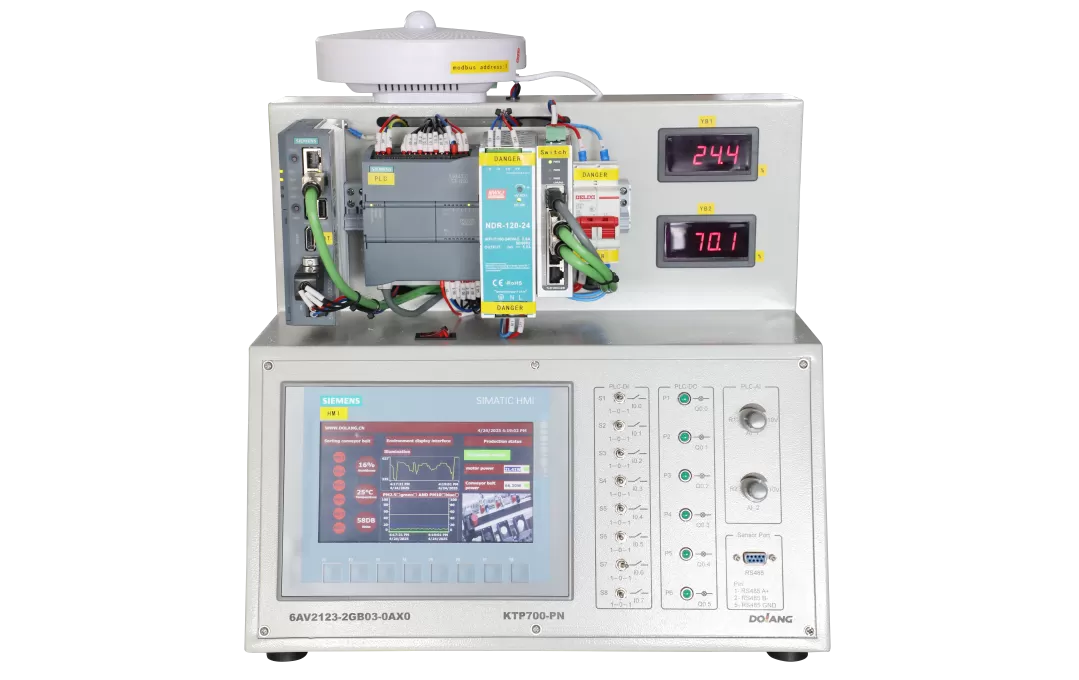

Model: DLWD-IOT102 Internet Of Things Training Board
1. Input power: AC220V±10% 50Hz
2. Output power: DC24V
3. Device capacity: <0.3KVA
4. Equipment size: not less than: 400*260*300mm
5. Operating environment: -10°C–45°C, relative humidity <90%RH
IOT & AI Training System
Model: DLWD-IOT102 Internet Of Things Training Board
1. Input power: AC220V±10% 50Hz
2. Output power: DC24V
3. Device capacity: <0.3KVA
4. Equipment size: not less than: 400*260*300mm
5. Operating environment: -10°C–45°C, relative humidity <90%RH
Details introduction
Overview
The IOT Internet of Things training equipment adopts sheet metal structure, that is, PLC, the execution control board, the IoT gateway, and the power supply are all installed on a sheet metal box, and the functions of the execution object board have been fixed (that is, the input and output of the I/O signal have been fixed), and the PLC , touch screen, and gateway have been connected according to their functions.
Configuration
Internet Of Things Training Board includes a PLC module,HMI touch screen module, switch module, IOT gateway module, Input/output signal module etc
Training projects
- PLC switching command trainng project
- PLC analog command trainng project
- Conversion and calculation of PLC data types
- Programming for execution objects
- Application of IoT module
- Making of monitoring screen
