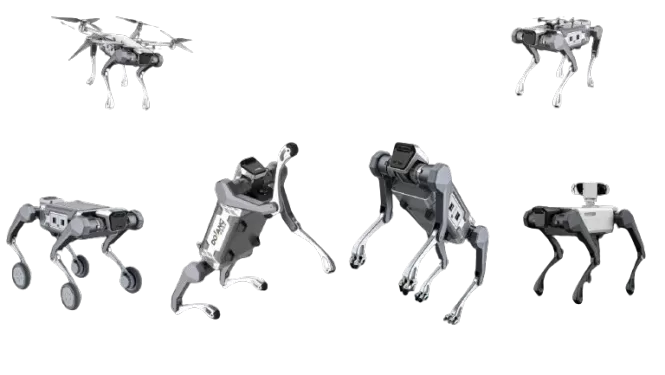

Model: DLHR-Q2-Max Quadruped Robot
Technical Parameter
Dimensions : 989mm × 464mm × 587mm
Total Weight : 30kg
Operating Temperature : -10°C to 60°C
IP Protection Rating : IP55
Continuous Payload : 10kg
Maximum Payload : 30kg
Endurance : 2h (No Load); 1h (Continuous Load)
Travel Range : Legged Mode: 8km (No Load)
Movement Speed: Legged Mode: 3m/s (Max)
Autonomous Charging : Supported; Hot-swappable Battery
Cooling System : Supported; Active Fan Cooling
Communication Capabilities : Supported; >100m Communication Range
Comprehensive Expansion Capabilities : External Power Ports: 5V, 12V, 24V, 72V (requires additional battery pack); External Communication Ports: Ethernet, Wi-Fi, USB, RS485, RS232. Supports:
Beyond-Visual-Line-of-Sight (BVLOS) communication, dual-spectrum PTZ cameras, thermal infrared sensors, robotic arms, debugging stands, millimeter-wave radar : 4G/5G : BeiDou/GPS/RTK positioning. Supports expansion racks and other custom extensions.
Mobility Capabilities : Capable of climbing stairs (step height ≥ 20cm); capable of normal locomotion on unstructured terrain such as grass, gravel paths, and dirt roads; capable of climbing slopes ≥ 30°.
Environmental Perception Capabilities : High-precision LiDAR, Depth Camera; ROS-based Intelligent Perception & Computing Module; AI Module. Features include object detection and recognition, 2.5D/3D map construction, autonomous localization and navigation, and dynamic obstacle avoidance.
