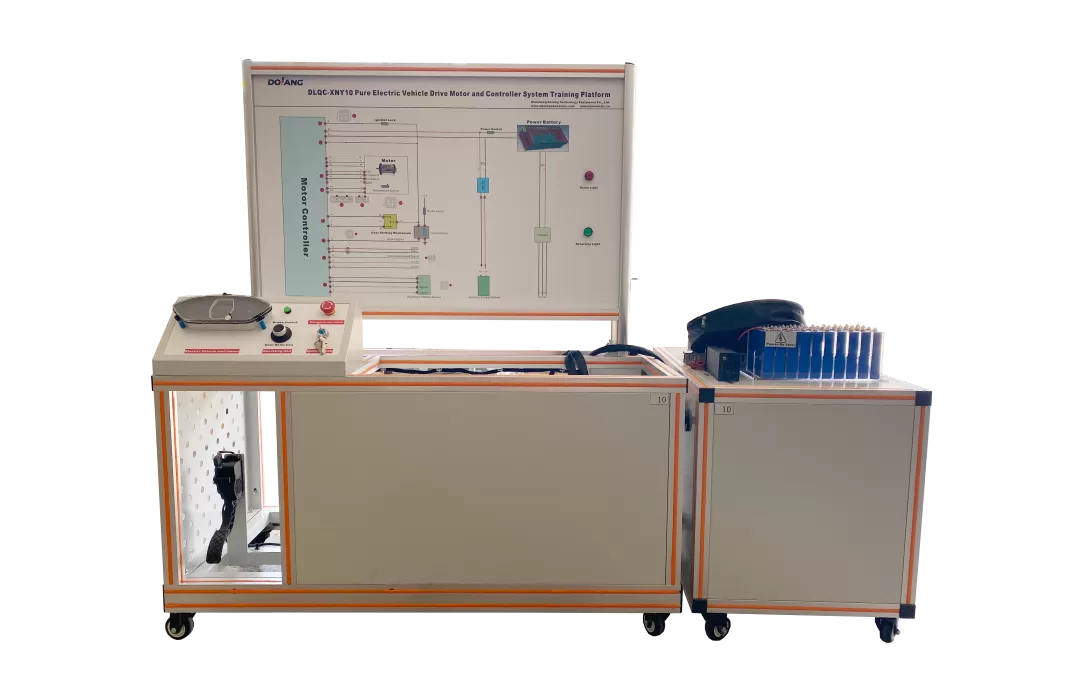

Model:DLQC-XNY10 Electric Vehicle Drive Motor and Controller System Training Platform
(1) Metal platform for the assembly and maintenance of the electric drive assembly (unit: mm)
Overall design dimensions of the equipment: ≥1650*820*1600mm (length*width*height)
(2) Permanent magnet synchronous motor
Overall dimensions: ≥400*370*320mm (length*width*height)
Drive voltage: ≤80V DC
Rated power: ≥80KW
Rated speed: ≥5100r/min
Maximum output torque: ≥300N.m
Number of pole pairs: ≥4
Insulation class: H
Cooling method: Liquid cooling
Weight: ≥50Kg
(3) Drive motor assembly machine
Overall dimensions: ≥1050*340*325mm (length*width*height)
Screw nut mechanism: ≥2 ways
Effective screw stroke: ≥800mm
Ejector center height: ≤285mm
Hand crank: ≥2
(4) Reducer
Overall dimensions: ≥470*320 *210mm (length * width * height)
Type: Fixed gear ratio transmission
(5) Reducer flip mechanism
Overall dimensions: ≥575*75*250mm (length * width * height)
Flip angle: ≥270°
Matching reducer:
Model: NRV30
Reduction ratio: ≥40
Input shaft: ≥10mm
Output hole: ≥14mm
Hand crank outer diameter: ≥100mm
(6) Permanent magnet synchronous motor driver
Overall dimensions: ≥255*240*130mm (length * width * height)
Rated voltage: 80-360V DC
Rated current: ≥53A
Control voltage: 10.5-30V DC
Rated power: ≤12KW
Communication method: CAN
Weight: ≥5.4kg
Cooling method: natural cooling
Maximum efficiency (excluding motor): ≥93%
(7) Computer host
Working voltage: 220V AC
System: Windows
Graphics card: RTX2060 and above
Memory: ≥16G
Hard disk: ≥256G
Processor: ≥i5 10th generation
(8) Display
Overall size: ≥535*315*35mm (length*width*thickness)
Display specifications: ≥23 inches
Resolution: ≥1920*1080
Refresh rate: ≥75HZ
Panel type: IPS hard screen
Screen ratio: 16:9
(9) Fault box
Overall size: ≥560*355*110mm (length*width*height)
Number of fault design lines that can be met: ≥50
Panel data measurement hole: ≥ 20
Ignition switch: ≥1
Gear switch: ≥1
Brake switch: ≥1
Accelerator switch: ≥1
(10) High-precision measuring platform
Overall size: ≥530*145mm (length*width)
Accuracy level: ≥National standard 00 grade
Compressive strength: ≥240-245N/M
Water absorption: <0.13%
Shore hardness: >HS70
(11) DC power supply
Input power: ≥2.2KW
Input voltage: 220V AC
Output voltage: 0-345V DC
Voltage display accuracy: 0.1V
Current display accuracy: 0.1A
