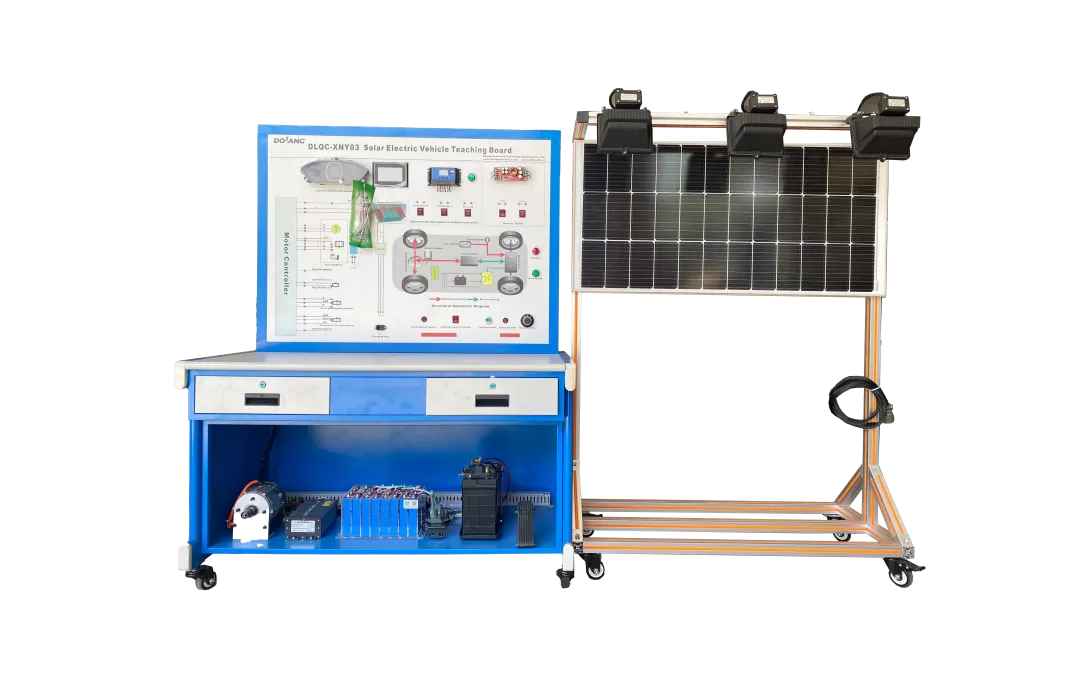

DLQC-XNY03 Solar Electric Vehicle Teaching Board

1. The DLQC-XNY03 Solar Electric Vehicle Teaching Board comprehensively demonstrates the solar battery management system of an electric vehicle, dynamically simulating its operational status and working processes.

2. The teaching board panel utilizes 4mm-thick advanced aluminum-plastic composite material that is corrosion-resistant, impact-resistant, stain-resistant, fire-retardant, and moisture-proof. Its surface undergoes a special primer coating process; the panel features permanently printed, fade-resistant color circuit diagrams and schematic diagrams of working principles. Students can visually compare the structural schematic of the EV solar battery management system with the physical components to understand and analyze its operational principles.

3. The teaching board panel incorporates an ignition switch, solar panel, sunlight simulator, solar management module, battery, DA/DA conversion circuit, and control switches.

4. The panel section utilizes a 1.5mm cold-rolled steel plate stamped structure with an aesthetically pleasing design; The base frame utilizes welded steel construction with a spray-coated finish, featuring self-locking casters. The teaching board base includes a 30cm-wide tabletop for placing documents, lightweight testing instruments, etc.

5. The teaching board operates on standard 220V AC power, which is internally transformed and rectified into 12V DC power. No battery is required, eliminating charging hassles. The 12V DC power supply includes short-circuit protection.
