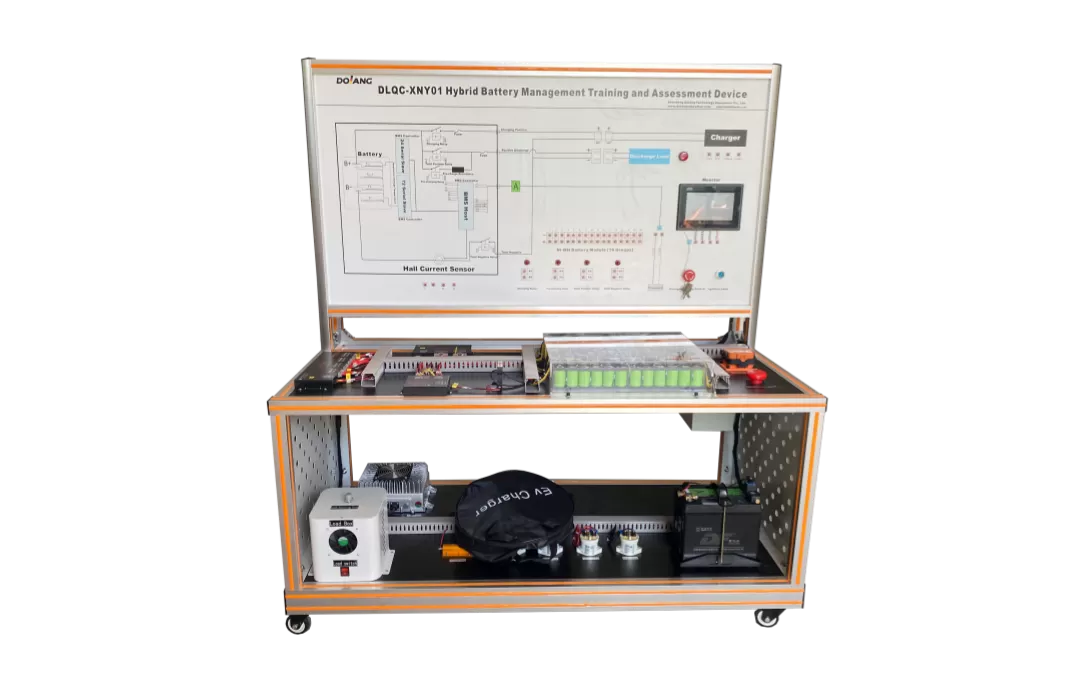

MODEL: DLQC-XNY01
1. Bench Dimensions: Length 1800 × Width 1200 × Height 1800 (mm).
2. Frame Material: National Standard Steel / Electrostatic Spray Coating.
3. Main Panel Material: Aluminum-plastic composite panel—weather-resistant, wear-resistant, high-temperature resistant, high-strength, corrosion-resistant.
4. System Circuit Diagram Printing Method: UV Printing (System circuit diagrams are assembled by strictly following the original manufacturer's maintenance manual schematics).
5. Side Panel Material: Aluminum-plastic composite panel (weather-resistant, corrosion-resistant, high-strength, high-temperature resistant).
6. Test Ports: High-quality nylon material, high-pressure safety-rated 4mm panel banana jack ports / PA66 high-strength nylon / nickel-plated brass / materials plated to RoHS environmental standards.
7. Load-bearing wheels: One-piece molded nylon construction. High load capacity and wear resistance. Wide wheel surface ensures exceptional stability, smooth rotation, and outstanding durability. Dual-bearing design distributes load evenly, enhancing pressure resistance and impact absorption.
8. Engine Specifications:
Engine: 1.8L.
Maximum Horsepower (Ps): ≥99.
Maximum Power (kW): ≥73.
Maximum Power RPM: ≥5200.
Maximum Torque (Nm): ≥142.
Maximum Torque RPM: ≥4000.
Engine Technology: VVT-i.
Fuel Type: Hybrid (Gasoline-Electric).
Electric Motor Total Torque (Nm): ≥207.
Transmission Type: Electronic Continuously Variable Transmission (E-CVT).
