Model: DLQC-FDJ42 Automobile hydraulic brake system Training Equipment
1. Automotive teaching platform Frame Dimensions: ≥ 1400 mm (L) × 600 mm (W) × 1200 mm (H)
2. Automobile Training Frame Material: Sheet metal with electrostatic spraying
Automotive Training Equipment
Model: DLQC-FDJ42 Automobile hydraulic brake system Training Equipment
1. Automotive teaching platform Frame Dimensions: ≥ 1400 mm (L) × 600 mm (W) × 1200 mm (H)
2. Automobile Training Frame Material: Sheet metal with electrostatic spraying
Details Introduction
Overview

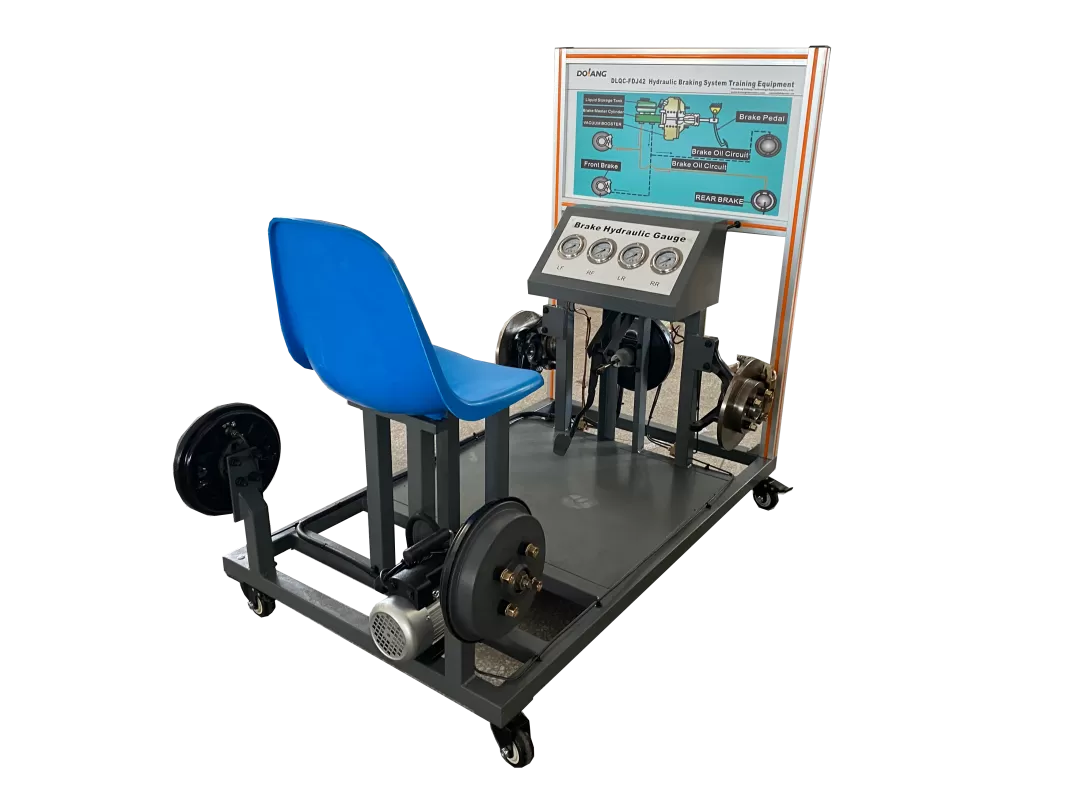

The automobile training equipment is based on a Volkswagen Jetta hydraulic brake system. The automotive teaching system is assembled on an industrial aluminum alloy mobile platform. And the teaching platform can simulate the operation of the vehicle's hydraulic brake system, as well as perform practical operations such as fault detection and diagnosis, fault simulation, and troubleshooting. This car teaching platform demonstrates the structure, principles, and operating process of the vehicle's hydraulic brake system, suit for different vocation education institutes, polytechnic schools, engineer universities.
Configuration
The training platform includes the following key components: ① Brake master cylinder (1 set); ② Seat (1 set); ③ Brake drum assembly (1 set); ④ Brake fluid reservoir (1 set); ⑤ Vacuum booster assembly (1 set); ⑥ Pressure gauges (4 sets)
Engineer Training Projects
1. Through the automobile training platform, learn Hydraulic Braking System Assembly and Disassembly Training Project;
2. Through the car training platform, learn Hydraulic Braking System Process Training Project;
3. Through the automotive training system, learn Hydraulic Braking System Structure and Principle Understanding Training Project;
4. Through the automobile training equipment, learn Hydraulic Braking System Dynamic and Static Adjustment Training Project;
5. Through the car teaching model, learn Hydraulic Braking System Adjustment, Bleeding, and Maintenance Training Project.
