DLQC-XNY16 Electric Vehicle Fault Diagnosis and Detection Training Platform

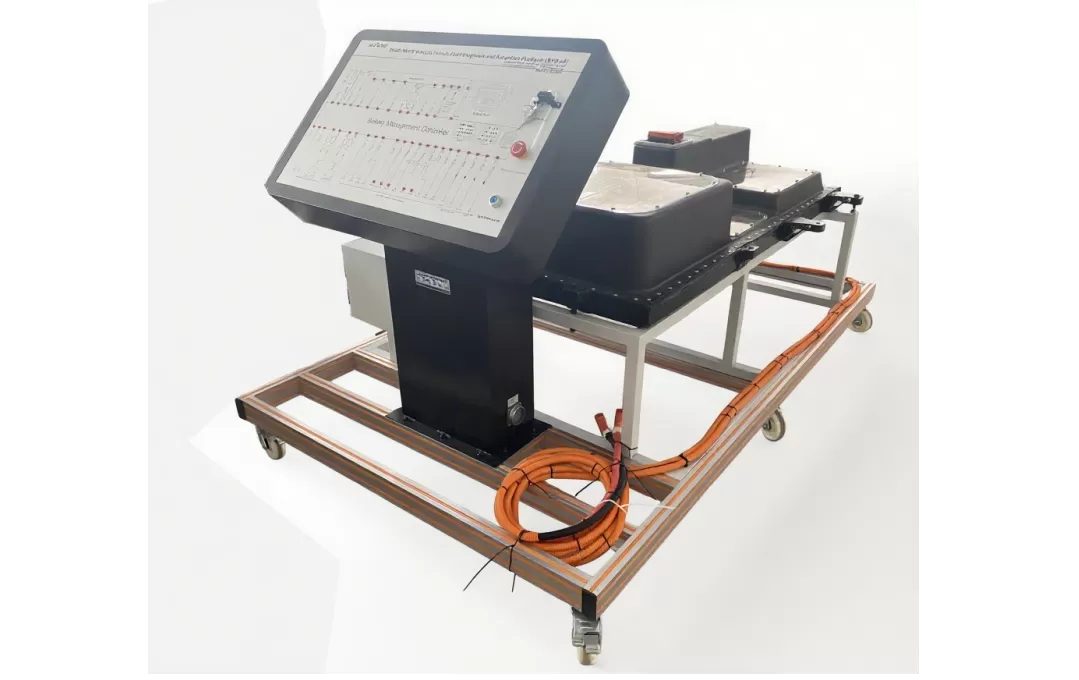

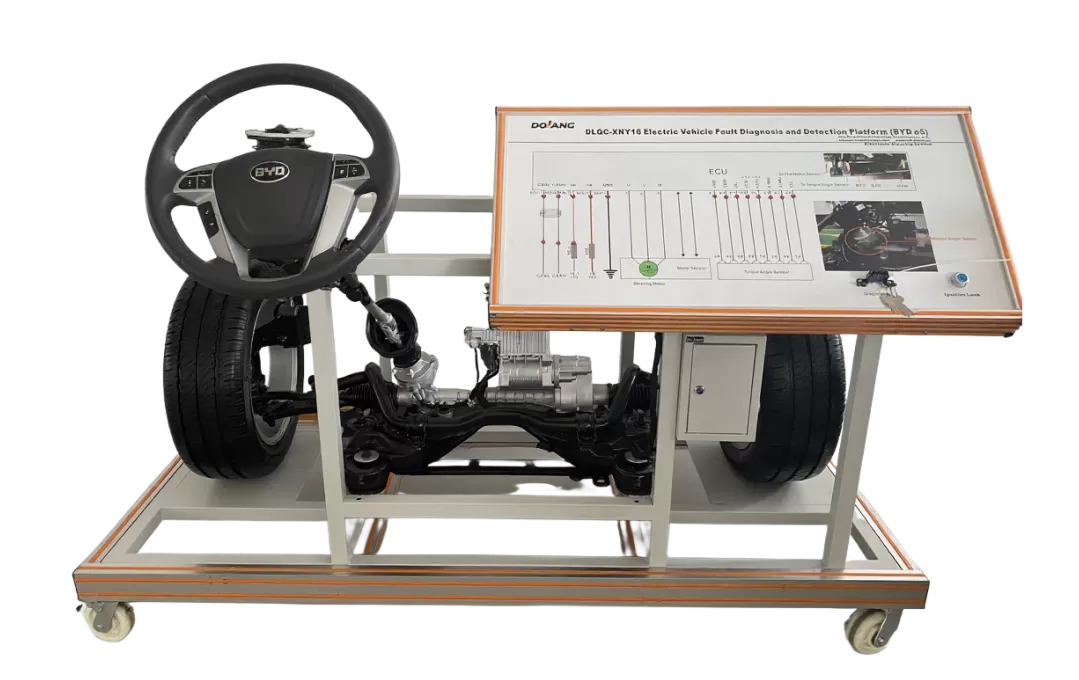

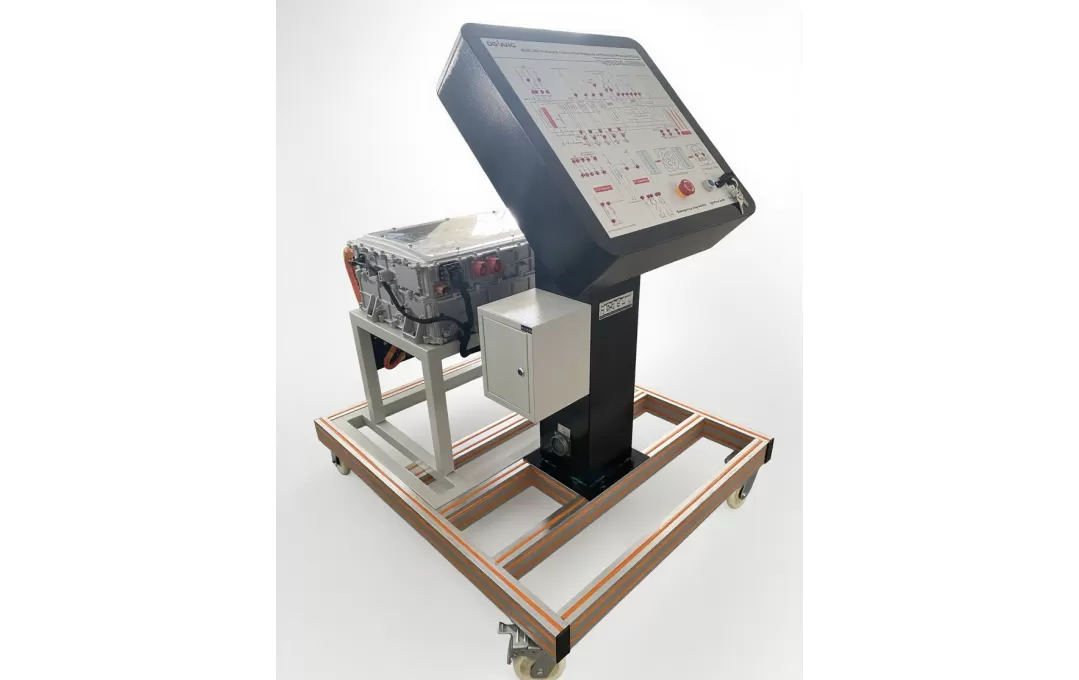

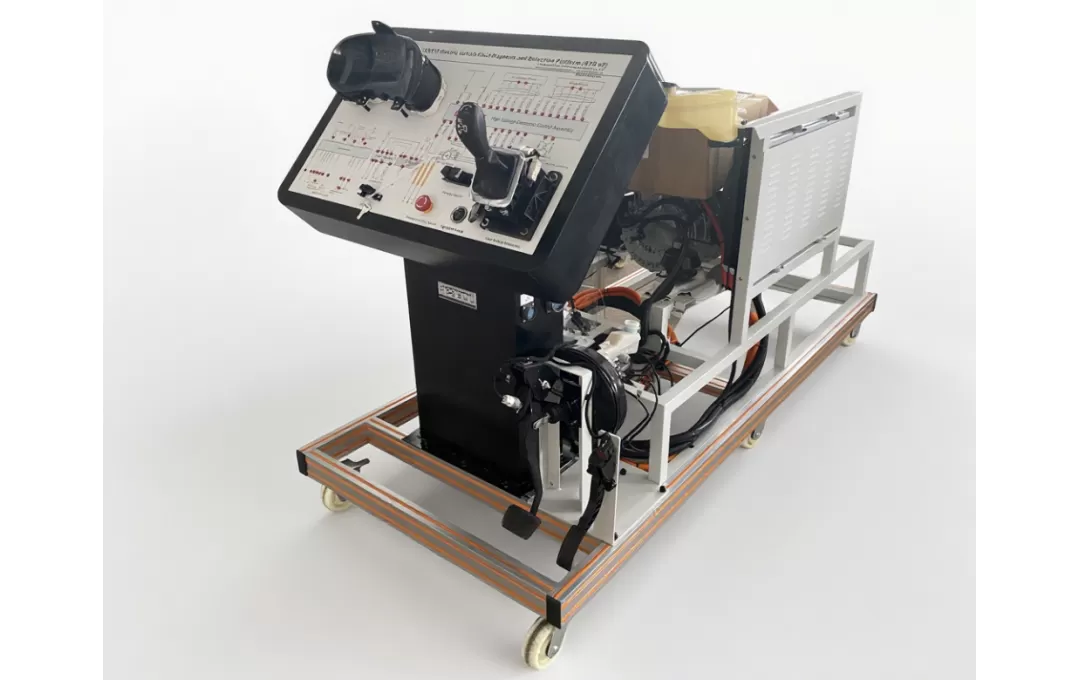

The Electric Vehicle Fault Diagnosis and Detection Training Platform Utilize a genuine BYD EV (3+3 platform) high-voltage three-in-one charging and distribution assembly (including a DC/DC converter, on-board charger (OBC), and high-voltage distribution unit (PDU)) and a three-in-one drive system (drive motor, motor controller, and reducer). The high-voltage power lines and low-voltage control lines are connected to the BYD EV power battery and management system training platform, whose functions and control methods are identical to those of the BYD EV. This Electric Car training bench realistically demonstrates the connection and control relationships between the core components of the BYD EV's high-voltage electronic control system, including their installation locations and operating parameters, as well as safety precautions for the high-voltage system. The automotive training equipment also cultivates students' ability to analyze and troubleshoot the BYD Qin EV's high-voltage electronic control system. This training platform is suitable for teaching new energy pure electric vehicle courses and maintenance training at vocational and technical colleges.
