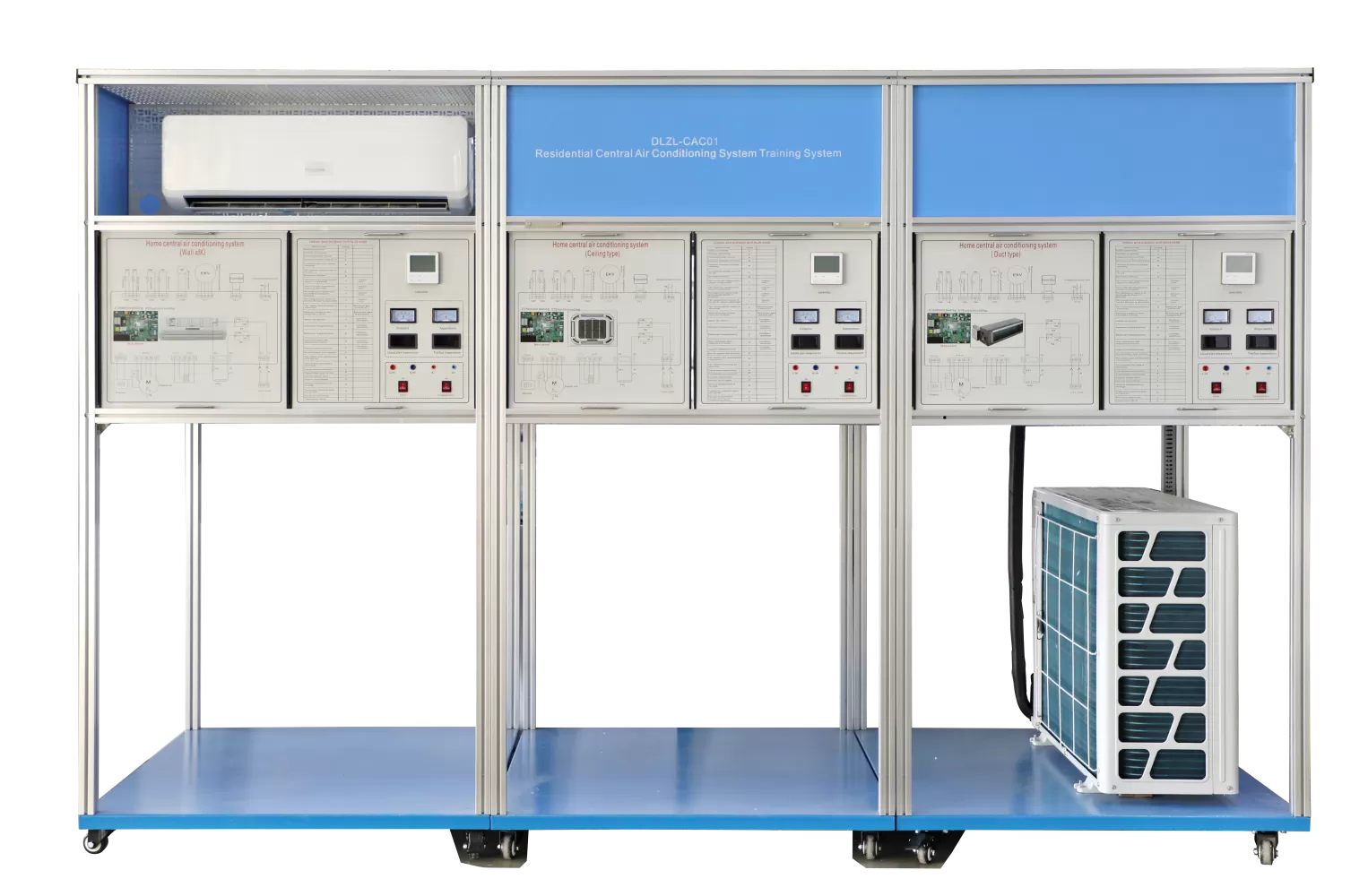

    DLZL-CAC01 Household Central Air Conditioning Training Device

    Share:

    Model: DLZL-CAC01 Household Central Air Conditioning Training Device

    1.Temperature: Ambient temperature range is -5℃～+40℃ Relative humidity <85% (25℃) Altitude <4000m

    2.System footprint: length × width × height ≈ 4 m × 1.1 m × 2.1 m

        Single unit size: length × width × height ≈ 1.1 m × 1.1 m × 2.1 m

    3.Machine power: <3.8kVA.

    4.Altitude: <4000m.

    5.Input power: single-phase three-wire ~ 220V ± 10% 50Hz.

    6.Safety protection: With leakage voltage and leakage current protection devices, safety complies with national standards


    Inquire Now
    DLZL-CAC01 Household Central Air Conditioning Training Device

    Details introduction

    Equipment Overview

    The HVAC air conditioning training assessment equipment is an innovative product developed specifically to meet the needs of vocational education including engineer university,polytechnics,vocation schools.

    The design concept of the Household Central Air Conditioning Training Device is to simulate a real working environment, so that students can learn and master air conditioning and refrigeration technology in a simulated working scene. By using this device, students can have a deep understanding of the working principle of household central air conditioners, including key parts such as refrigeration cycle, air flow, and control system. At the same time, students can also become familiar with the installation, commissioning, maintenance, and fault diagnosis of air conditioning equipment through practical operation.

    The HVAC lab teaching model is powerful. This air conditioning trainer is not only suitable for the teaching of refrigeration technology, refrigeration fluid machinery, principle and maintenance of household refrigeration equipment, cold storage and refrigeration technology and other related courses in higher vocational colleges and vocational schools, but also can be used as a training base for professional qualification certification such as refrigeration equipment repairman (primary, intermediate, senior). In addition, the air conditioning trainer also supports the teaching of a variety of refrigeration equipment maintenance related courses, such as "Refrigeration Equipment Repairer (Senior)", "Principle and Maintenance of Refrigeration Equipment", "Operation, Installation and Maintenance of Refrigeration and Air Conditioning Devices", "Central Air Conditioning Worker (Primary, Intermediate, Senior)", "Principle and Maintenance of Household Refrigeration Equipment", etc.

    Contact Dolang today for a personalized Educational Equipment Solutions or live demonstration.

    Equipment Features

    1. One-to-three structure: The DLZL-CAC01 household central air conditioning training device system uses one-to-three units . Each execution object is an independent module. It uses three types of terminal processing units: patio type (embedded), wall-mounted type, and fan coil. One air conditioner outdoor unit drives three refrigeration units to start. All are installed on a universal aluminum profile platform, and each execution object and electrical control circuit are constructed. Let students understand the diverse structural forms of indoor units more intuitively .

    2. Open design : The industrial refrigeration trainer has the function of disassembly and assembly, which can be used to train the disassembly and assembly of different forms of terminal equipment. The refrigeration recovery system device is used to achieve the reuse of refrigerant in the process of repeated disassembly and recovery, which is efficient and environmentally friendly. Each terminal processor is equipped with a refrigeration system flow board, a control circuit flow board, a temperature gauge and a pressure gauge, and all control circuits of the unit can be observed.

    3. True restoration: The control function, protection function and display function are completely consistent with the actual household central air conditioner. Each user terminal can be independently controlled under the same working conditions. The training device system is equipped with a simulated fault setting function to set faults in the refrigeration system and electrical system. Through specific phenomena, students' analytical ability is improved, which is conducive to students applying theory to practice and cultivating their practical skills.

    4. Automatic protection device : This industrial refrigeration trainer is equipped with a current-type leakage protection device. When the leakage current to the ground exceeds a certain value, the circuit breaker will trip and cut off the power supply. There is also a thermal protection device to protect the compressor from overheating and overload.


    Application Scenarios

    Train with real-world HVAC systems: The DLZL-CAC01 enables hands-on learning of installation, operation, maintenance, and fault diagnosis of household central air conditioners.

    Ideal for:

    • Vocational colleges & technical schools – practical training for students

    • Enterprise training centers – upskilling HVAC engineers and technicians

    • Skills competition bases – preparation for national and international contests

    Why it works: Students and professionals gain real-world experience, master industrial-standard procedures, and build skills that directly translate to the workplace.


    Training Projects

    -  VRA air conditioning system knowledge and operation

    -  Basic knowledge of electrical control principles of outdoor units

    -  Basic knowledge of electrical control principles of indoor units (three types of indoor units)

    -  Refrigeration system process principle

    -  Refrigeration system operation under different working conditions

    -  System Failure Simulation Settings

    -  Central air conditioning system installation and commissioning training

    -  Central air conditioning control system installation training

    -  Installation methods and standards for outdoor and indoor units

    -  Installation methods and standards of piping systems

    -  Power distribution and control system installation methods and standards

    -  Main contents, steps and methods of engineering commissioning

    -  Refrigeration system common proble

    -  Communication circuit training

    -  Common problems in power distribution systemControl system common problems

    -  Common Problems in Power Distribution Systems

    -  Heating condition (heat pump) performance test

    -  Conventional fault diagnosis and analysis

    -  High voltage protection training

    -  Indoor sensor training

    -  Indoor unit communication failure training

    -  Indoor unit sensor training

    -  Indoor unit installation and setting training


    Key Advantages of Household Central Air Conditioning Training Device

    Modular one-to-three system for flexible teaching
    Open design for disassembly, assembly, and maintenance training
    Realistic system operation with simulated fault settings
    Industrial-grade components for long-term reliability
    Supports professional certification and vocational training courses
    Safe operation with multi-layer automatic protection


    Why Choose Dolang?


    Dolang is a global leader in industrial robotics and intelligent manufacturing, combining advanced R&D with hands-on vocational education expertise.
    We provide end-to-end solutions, from cutting-edge industrial equipment to professional training programs, trusted by national and international competitions.
    Partner with Dolang to access innovative technology, world-class training, and reliable support that empowers your students and workforce for the future.


    Request a Demo Today!
    Contact Dolang now for full specifications, training program design, and a customized quotation. Our experts provide on-site guidance, technical support, and tailored solutions for your institution.
