Air Conditioning and Refrigeration Training Equipment

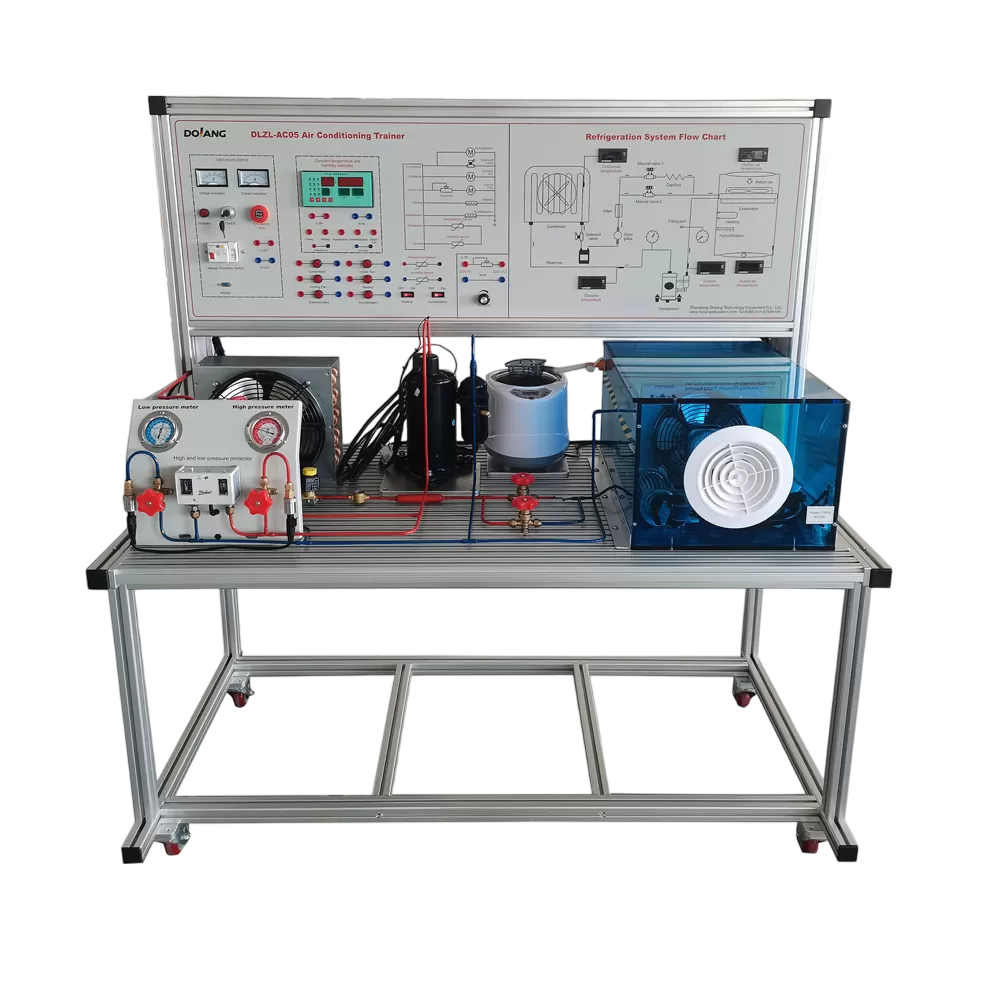

Model: DLZL-AC05 Air Conditioning Trainer
Power supply: single phase 220 V ± 10%, 50 Hz, 16 A;
Test bench size (mm): 1500 (length) × 750 (width) × 1650 (height);
Test bench: movable steel bench with four casters (two with brake and two without brake).
Details introduction
Air Conditioning Trainer Overview
The refrigeration trainer can carry out practical operation on the electrical control circuit listed in the textbooks of "primary maintenance of electric refrigeration technology" and "intermediate maintenance of electrical technology", which improves the following skills of students after operation training:
(1) Familiar with the structure, principle, installation and use of common low voltage apparatus;
(2) Understand the use of graphic symbols and text symbols in circuit diagrams, and be able to arrange them according to the actual objects,
(3) Master the professional knowledge learned from books and complete the detection and debugging of the circuit independently.
Complete Refrigeration System Demonstration
Clearly presents the full compression refrigeration cycle including compressor, condenser, expansion device, and evaporator.
Integrated Electrical Control Training
Supports low-voltage electrical circuit wiring, debugging, fault detection, and control logic analysis.
Real-Time Data Monitoring
Equipped with upper computer control system for data collection, performance analysis, and system status monitoring.
Practical & Theory Integration
Bridges textbook knowledge with hands-on training, improving students’ installation, troubleshooting, and maintenance skills.
Mobile & Safe Design
Steel frame structure with lockable casters for flexible classroom use and safe operation.
Looking for a professional HVAC training solution?Browse training base solutions.
Equipment Features
1.Each system is fully piped and electrically connected for ready operation.The layout of the components is clear and labeled, which is easy to identify.
2. The refrigeration training equipment has the upper computer control (PC or touch screen) to control the running state of the equipment.
Ac Trainer Training Projects
- Understand and study all components used in air conditioning system;
- Study the state of refrigerant in compression refrigeration cycle;
- Study the process of heating, cooling, humidification and dehumidification;
- Determine the refrigeration effect, working input, actual cycle power, theoretical cycle power, relative cycle power, refrigeration capacity and equipment efficiency;
- Collect the data of refrigeration system by computer.
Vocational colleges and technical institutes
HVAC training centers
Electrical & refrigeration maintenance training
Skill competition preparation
Technician certification training
Designed according to primary and intermediate refrigeration maintenance curriculum
Helps students transition from theory to practical troubleshooting
Enhances circuit detection, debugging, and system analysis skills
Suitable for vocational schools, technical institutes, and training centers
Build practical refrigeration and electrical control skills with the DLZL-AC05 Air Conditioning Trainer.
